케이블릴
Magnet Coupler Type

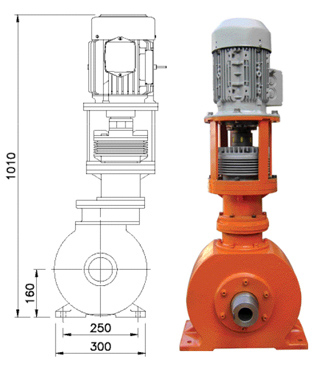

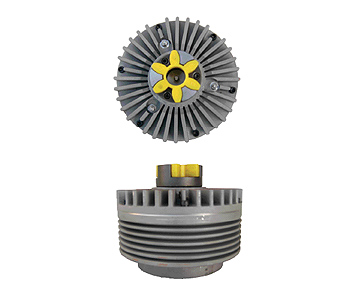

Magnet Coupler Type 개요
Flange Motor 사용.
영구자석 Block과 Disk 자력에 의한 Torque 발생 구조.
비접촉식 Coupling 방식의Torque 전달 구조.
Air Gap에 따른 Torque 가변이가능한구조.
Magnet Housing은열발산을 위하여특수알루미늄 Fan 구조.
Compact Size로유지보수가 용이한 구조.
자력구동으로 인한 Cable 과장력 방지.

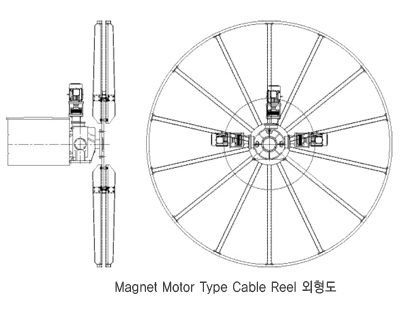

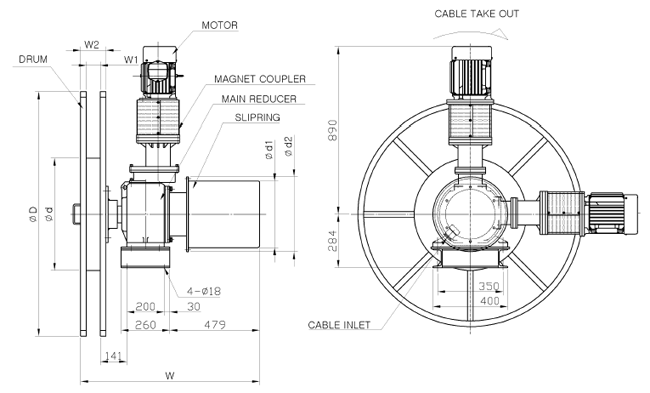

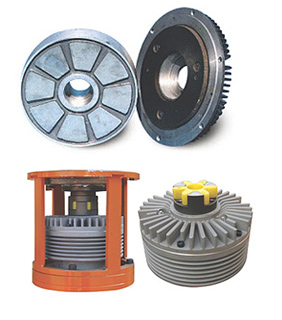

Magnet Coupler Type 구성품
Flange Motor
Back Stop Bearing
Jaw Coupling
Magnet Disk
Magnet Block
Planetary
Secondary Gear Box
Bevel Main Gear Box

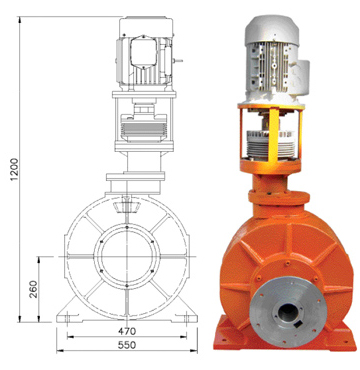

STANDARD EXPLANATION
| TYPE | SKMD1 - L |
| TORQUE | MAX. 45Kg-m |
| CABLE SPEC. | 8sq x 4c∼38sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |

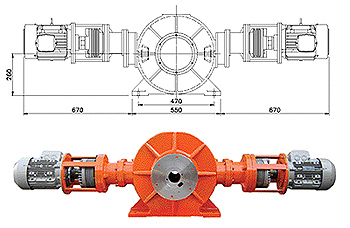

| TYPE | SKMD1 - L |
| TORQUE | MAX. 45Kg-m |
| CABLE SPEC. | 8sq x 4c∼38sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |

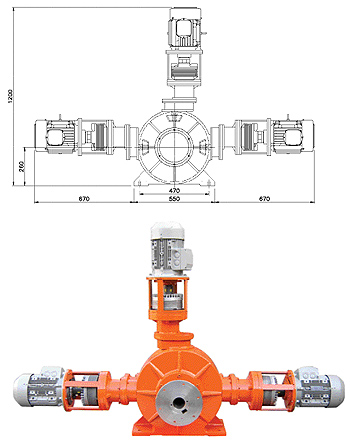

| TYPE | SKMD1 - M2 |
| TORQUE | MAX. 140kg-m |
| CABLE SPEC. | 38sq x 4c∼100sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |
| TYPE | SKMD1 - M3 |
| TORQUE | MAX. 210Kg-m |
| CABLE SPEC. | 60sq x 4c∼200sq x 4c |
| CABLE LENGTH | 50m ∼ 150m |

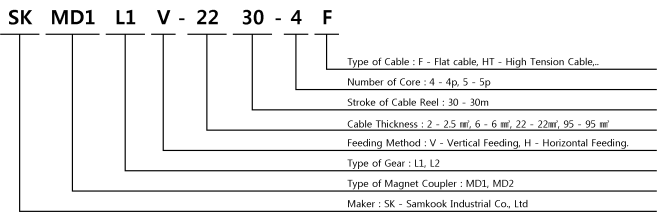

사양표
| TYPE | TORQUE | CABLE SPEC. | WINDING SPEED | FEEDING METHOD | Acceleration Time |
| SKMD1L1V-2220-3 | Max. 50kg-m | PNCT 22SQ*4C | Max. 50m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1L2V-2530-4 | Max. 80kg-m | PNCT 25SQ*4C | Max. 25m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1M2V-3545-4 | Max. 90kg-m | PNCT 35SQ*4C | Max. 20m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1L1H-2550-4F | Max. 40kg-m | PNCT-F 25SQ*4C | Max. 30m/min | Horizontal Feeding Type |
3.0 sec. |
| SKMD1L2H-9570-4F | Max. 75kg-m | PNCT-F 95SQ*4C | Max. 40m/min | Horizontal Feeding Type |
3.0 sec. |
| SKMD1M1H-120100-4S | Max. 90kg-m | PNCT-F 120SQ*4C | Max. 50m/min | Horizontal Feeding Type |
3.0 sec. |
